Description

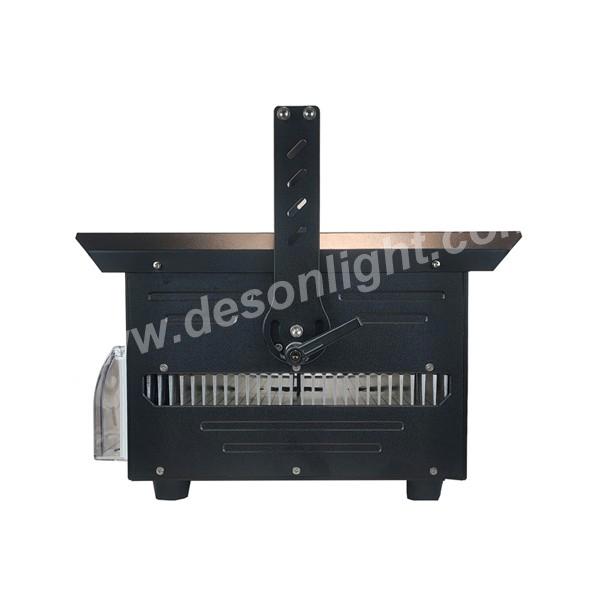

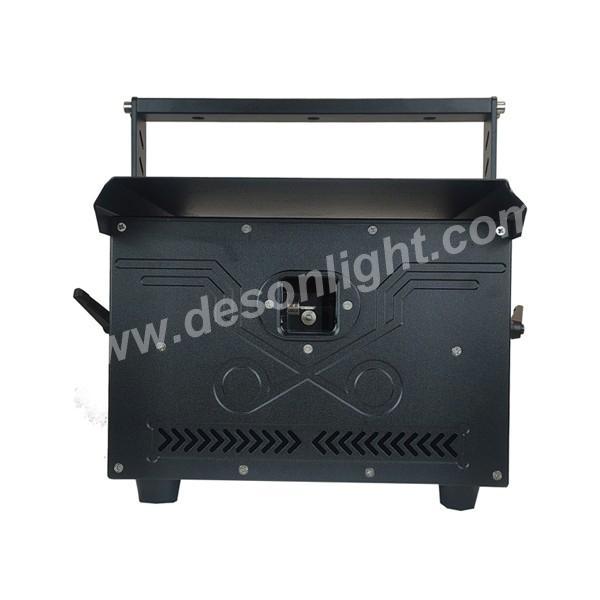

Waterproof Colorful 10Watts animation laser light L-RGB10-W
Laser parameters
RGB10W (Green 520nm/3W + Red 638nm/3W + Blue 445nm/4W)
Output color:
Red, green, blue, yellow, cyan, purple, white, true color (brightness, white balance adjustable, free color mixing)
Scanner parameters:
Galvo Speed: 20Kpps
Scanning angle: 60 degrees
Projection parameters:
Projection distance: 200 meters (when the pattern is the largest, if the pattern is reduced, it can shoot a longer distance, and a beam of light can shoot 1000 meters)
Projection range: 100*100 meters (200 meters away, if you want to project a larger range at a short distance, you can add a wide-angle lens)
Operating mode

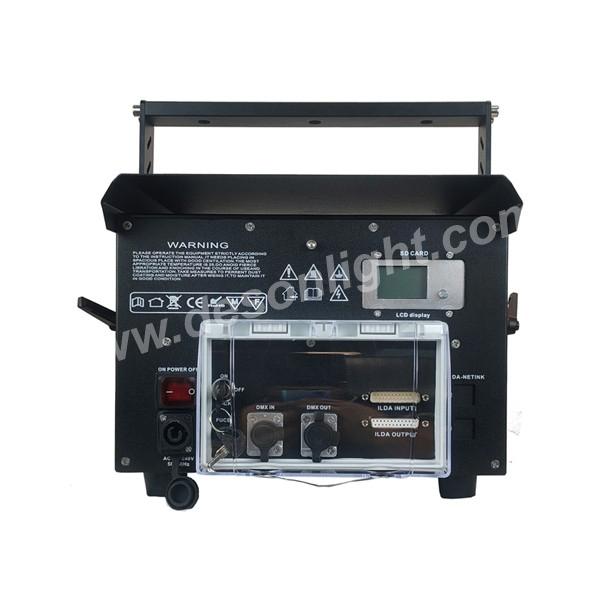

Self-propelled, voice control, memory card playback, DMX console, master-slave synchronization, computer software
Number of DMX channels: 10 or 34 channels
Protection class: IP65 (storm proof)
Graphic content parameters:
Chip built-in pattern: 85
Memory card animation: 200 (can be replaced by the user, can be added to more than 1000)
Input voltage: AC100~240V/50~60Hz
Rated power: 200W
Fuse: 6A
Packaging parameters
Lamp size: L300*W258*H240mm
Net weight: 5kg
Carton size: L500*W350*H400 mm
Gross weight: 7 kg
Scope of application
1. Bar night scene Fan-shaped beam of bar night scene (need to be sprayed by a fog machine), blessing text (on the wall or display screen, or on the curtain)
2. Landscape project Small fountain water screen projection, mountain projection within 1 km
Hit the invisible screen, hill or building to form animal running, bird and fish swimming effect. Cooperate with position sensor, form interactive beam, interactive water show, interactive game effect
Laser parameters
RGB10W (Green 520nm/3W + Red 638nm/3W + Blue 445nm/4W)
Output color:
Red, green, blue, yellow, cyan, purple, white, true color (brightness, white balance adjustable, free color mixing)
Scanner parameters:
Galvo Speed: 20Kpps
Scanning angle: 60 degrees
Projection parameters:
Projection distance: 200 meters (when the pattern is the largest, if the pattern is reduced, it can shoot a longer distance, and a beam of light can shoot 1000 meters)
Projection range: 100*100 meters (200 meters away, if you want to project a larger range at a short distance, you can add a wide-angle lens)
Operating mode
Self-propelled, voice control, memory card playback, DMX console, master-slave synchronization, computer software
Number of DMX channels: 10 or 34 channels
Protection class: IP65 (storm proof)
Graphic content parameters:
Chip built-in pattern: 85
Memory card animation: 200 (can be replaced by the user, can be added to more than 1000)
Input voltage: AC100~240V/50~60Hz
Rated power: 200W
Fuse: 6A
Packaging parameters
Lamp size: L300*W258*H240mm
Net weight: 5kg
Carton size: L500*W350*H400 mm
Gross weight: 7 kg
Scope of application
1. Bar night scene Fan-shaped beam of bar night scene (need to be sprayed by a fog machine), blessing text (on the wall or display screen, or on the curtain)
2. Landscape project Small fountain water screen projection, mountain projection within 1 km
Hit the invisible screen, hill or building to form animal running, bird and fish swimming effect. Cooperate with position sensor, form interactive beam, interactive water show, interactive game effect
3. Building advertisements can project text, graphics, and animations onto buildings, making them visible to people within 1000 meters
