Description

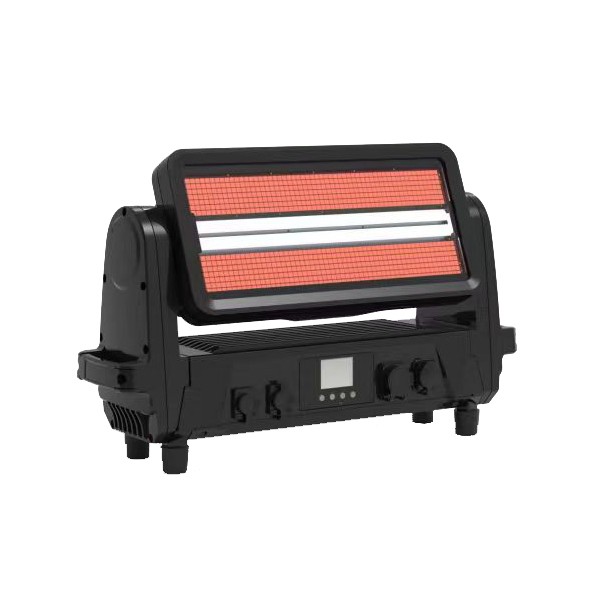

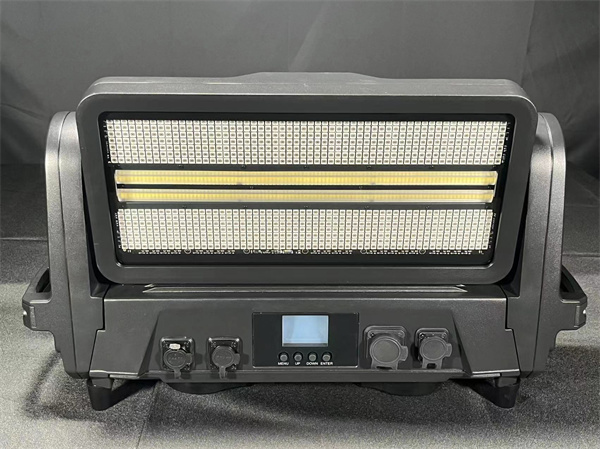

Chauvet IP65 Waterproof outdoor LED wall washer strobe light LS-917
Optical parameters:
Light source:1.56W white 392pcs 2835 Leds,1W RGB 3in1 784pcs 5050 Leds
Color Temperature:2800K-8000K
Lumen full output :R:5480 Lm；G：11760 lm；B：1560 lm；W：45000 lm；ALL:63880 lm
Illumination:ALL:/ Lux；R：/ Lux；G：/ Lux；B：/ Lux；W：/ Lux； @5米
CRI:Ra≥90
R9:≥90
Main wave length: R：622nm；G：525nm；B：457nm
Light source life: 20000 hours
Beam angle: 110°
Dynamic effect:
Strobe: 0～20Hz
Dimmer: 4 Dimmer curve，0～100% dimming
Electronic parameter:
Input and frequency: 100～240VAC,50～60Hz
Power: Full bright 700W，Strobe1200W
Power connection: Waterproof POWERCORN input
Signal connection: Waterproof 3-pins DMX signal cables in /out，The max links 32pcs；Waterproof network signal input and output
Power factors: 0.95 @230V
Working conditions: -10°～45°
Switch power: 100～240VAC, 50～60Hz,28V 800W
Structure parameter:
Products size: 494×316×160 mm
Weight:
Net：12.0Kg(Clamps and quick lock not included）
Protection rate: IP65

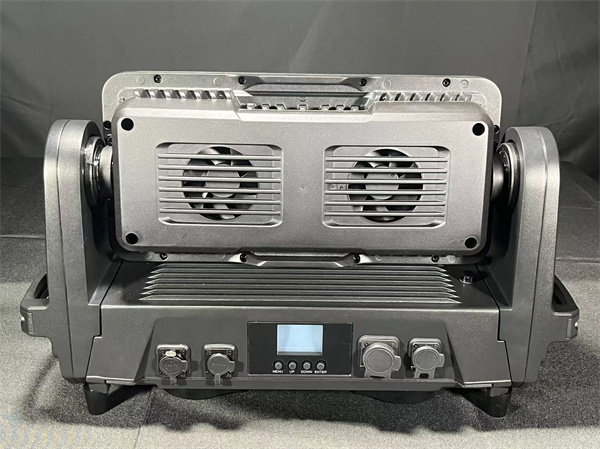

Heat dissipation: Waterproof and low-noise fan to force heat dissipation:
Housing Die-cast magnesium-based aluminum alloy; black

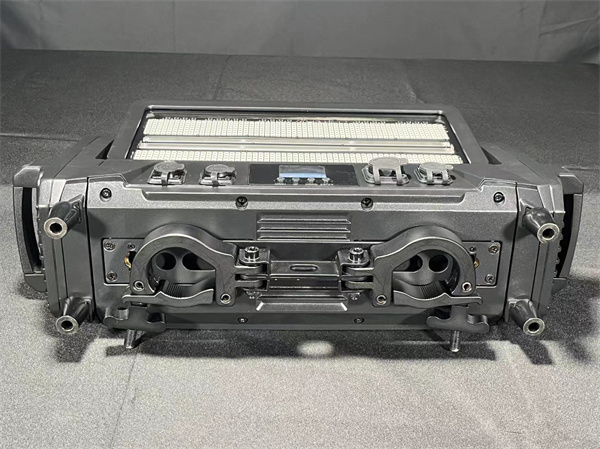

Install mode Side，hanging
Control:
Control mode: Art-net/DMX512/RDM
DMX Channels: 8/11/13/24/30/74/97CH
Display: TFT
Refresh frequency: 600Hz/1200 Hz/2000 Hz/4000 Hz/6000 Hz/25KHz
Optical parameters:
Light source:1.56W white 392pcs 2835 Leds,1W RGB 3in1 784pcs 5050 Leds
Color Temperature:2800K-8000K
Lumen full output :R:5480 Lm；G：11760 lm；B：1560 lm；W：45000 lm；ALL:63880 lm
Illumination:ALL:/ Lux；R：/ Lux；G：/ Lux；B：/ Lux；W：/ Lux； @5米
CRI:Ra≥90
R9:≥90
Main wave length: R：622nm；G：525nm；B：457nm
Light source life: 20000 hours
Beam angle: 110°
Dynamic effect:
Strobe: 0～20Hz
Dimmer: 4 Dimmer curve，0～100% dimming
Electronic parameter:
Input and frequency: 100～240VAC,50～60Hz
Power: Full bright 700W，Strobe1200W
Power connection: Waterproof POWERCORN input
Signal connection: Waterproof 3-pins DMX signal cables in /out，The max links 32pcs；Waterproof network signal input and output
Power factors: 0.95 @230V
Working conditions: -10°～45°
Switch power: 100～240VAC, 50～60Hz,28V 800W
Structure parameter:
Products size: 494×316×160 mm
Weight:
Net：12.0Kg(Clamps and quick lock not included）
Protection rate: IP65
Heat dissipation: Waterproof and low-noise fan to force heat dissipation:
Housing Die-cast magnesium-based aluminum alloy; black
Install mode Side，hanging
Control:
Control mode: Art-net/DMX512/RDM
DMX Channels: 8/11/13/24/30/74/97CH
Display: TFT
Refresh frequency: 600Hz/1200 Hz/2000 Hz/4000 Hz/6000 Hz/25KHz
Pixel matrix: White 2*14，Color 2*7
Packing size: 62*37.5*23.5cm
gross weight: 14kg
