Description

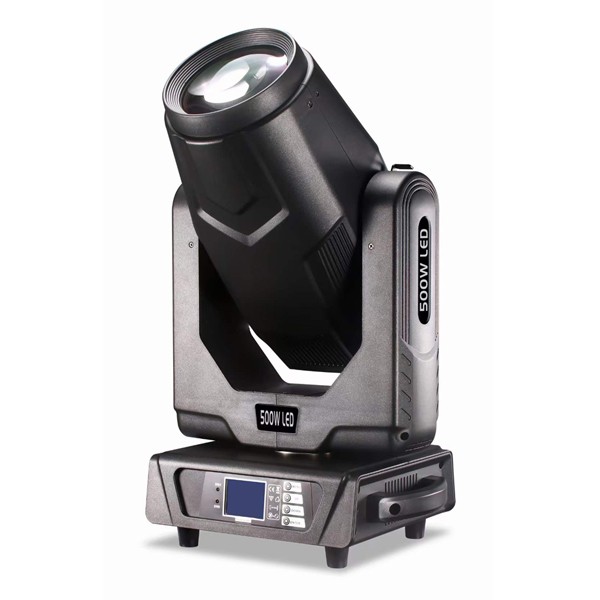

500w led framing shutter cutting surface LED moving head light LM-500F
Voltage: AC100 ~ 240V, 50/60Hz
Light source: high power 500W white light LED, 6800K
LED life: 20,000 hours
Horizontal scanning: 540 ° or 630 ° (16 BIT precision scan)
Vertical scanning: 270 ° (16 BIT precision scanning)
The advanced scanning system is faster, stable, quiet, and has the reset function of automatic error correction
CTO color temperature correction system
2 color tablets: 6 fixed color tablets+white light and 3 fixed colors+linear CTO
The color sheet can be positioned arbitrarily, with a two -way rotating rainbow effect
Focus: electronic focus, super slightly smooth adjustment focal length
Aperture: 5%~ 100%smooth adjustment
Flights: The highest frequency can reach 25Hz, and you can choose random frequent flash and pulse flash
Lighting: 0 ~ 100%linear lighting
Zoomment: 4.5 ° ~ 35 ° Linear magnitude
Cutting drive: A set of controlled light spots cutting systems composed of eight corner pieces,
The entire corner cutting system can be rotated at 90 °. Through accurate control of light cutting,
Can create a triangle, rhombus, rectangular and other shape light spots in any direction
Touch color LCD screen display
Rdm function
Size: 383 L*278 W*668 H (mm)
Net weight: 35kg
Voltage: AC100 ~ 240V, 50/60Hz
Light source: high power 500W white light LED, 6800K
LED life: 20,000 hours
Horizontal scanning: 540 ° or 630 ° (16 BIT precision scan)
Vertical scanning: 270 ° (16 BIT precision scanning)
The advanced scanning system is faster, stable, quiet, and has the reset function of automatic error correction
CTO color temperature correction system
2 color tablets: 6 fixed color tablets+white light and 3 fixed colors+linear CTO
The color sheet can be positioned arbitrarily, with a two -way rotating rainbow effect
Focus: electronic focus, super slightly smooth adjustment focal length
Aperture: 5%~ 100%smooth adjustment
Flights: The highest frequency can reach 25Hz, and you can choose random frequent flash and pulse flash
Lighting: 0 ~ 100%linear lighting
Zoomment: 4.5 ° ~ 35 ° Linear magnitude
Cutting drive: A set of controlled light spots cutting systems composed of eight corner pieces,
The entire corner cutting system can be rotated at 90 °. Through accurate control of light cutting,
Can create a triangle, rhombus, rectangular and other shape light spots in any direction
Touch color LCD screen display
Rdm function
Size: 383 L*278 W*668 H (mm)
Net weight: 35kg
